Twin screw extruder

Issuing time:2018-06-19 16:01

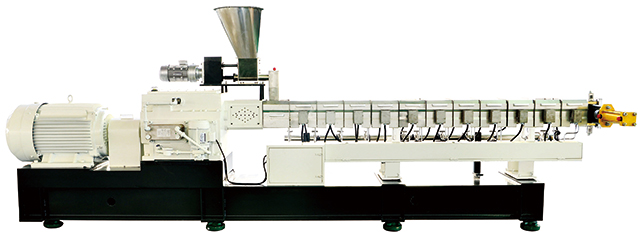

Product Name: twin screw extruder

Product Description: parallel twin screw extruder, patent for plastics

             blending, surname, filling, enhancement, etc.

Co-rotating twin screw extruder has best dispersing and compounding for all the materials.  Modular design can make the machine changed according to the materials and the process technology easily.   It is possible for one machine reach the extensive performance and special purpose in many place.

TE series included screw diameter from ∮16mm -∮160mm. Different processing demand can be satisfied by our different screw speed and different torque output.

Special design for the frame with special pats makes the machine installation easily and smoothly when running.

Hydraulic screen changer, non-stop screen changer, hinge die are available.

Various feeding system normally are volumetric feeder, gravimetric feeder can be used for more precise.


Power transmission system:

Newly strengthen design, Speed reducing and torque disturbing integrated.

 High torque gearbox from Italy used for the machine can improve the capacity of the machine and the safety torque make the machine long life.

Parameter table


Model

Diameter(mm)

L/D

SpeedRpm

Power(kW)

Torque (N.m)

产量

Capacity(kg/h)

TE-20

22

32-48

600

3

23

1-2

TE-35C

35.6

32-60

600

18.5

140

20-55

TE-52C

51.4

32-64

600

55

415

120-200

TE-65C

62.4

32-64

500-600

75-90

675

200-350

TE-75C

71

32-64

500-600

110-132

1005

300-700

TE-95

93

32-60

500-600

250-315

2365

500-1200

TE-135

133

32-52

400-500

550

6190

1650-2500



Article classification: Screw extruder
